A control valve is used to regulate flow, pressure, temperature or liquid level in an industrial process system. Unlike a basic isolation valve that mainly opens or closes a pipeline, a control valve continuously adjusts its opening according to process demand.
Control valves are widely used in steam, water, oil, gas, chemical and process systems where stable operation and accurate flow control are important. The correct valve depends on media, pressure, temperature, flow rate, pressure drop, control characteristics, actuator type and maintenance requirements.
ACP Valves supports industrial buyers with valves, boiler mounting products, pipe fittings and related industrial valve products for steam, water, oil, gas and process pipeline applications.
Quick Answer
A control valve automatically changes its opening to regulate process conditions such as flow, pressure, temperature or liquid level. The valve normally works with an actuator and process control signal. Common control valve types include globe, ball, butterfly, diaphragm and three-way valves. Correct selection requires checking flow rate, pressure drop, media, temperature, valve characteristics, actuator and sizing conditions.
What Is a Control Valve?
A control valve is an industrial valve designed to control the movement of fluid through a pipeline. It changes its opening based on a signal received from a controller, positioner or automation system.
For example, when a process requires more flow, the control system can command the valve to open further. When the required flow decreases, the valve moves toward the closed position.
This continuous adjustment helps maintain stable process conditions instead of simply switching the pipeline between fully open and fully closed.
How Does a Control Valve Work?
The control valve working principle is based on changing the available flow area inside the valve body. A process controller monitors a variable such as flow, pressure, temperature or liquid level. When the measured condition changes, the controller sends a signal to the valve actuator.
Basic working sequence
- A sensor measures a process condition.
- The process controller compares the measured value with the required set point.
- The controller sends a control signal.
- The actuator receives the signal and moves the valve stem or shaft.
- The valve trim or disc changes position.
- The flow area increases or decreases.
- The process condition moves toward the required set point.
Depending on the automation system, the signal may be pneumatic, electric or another supported industrial control signal.

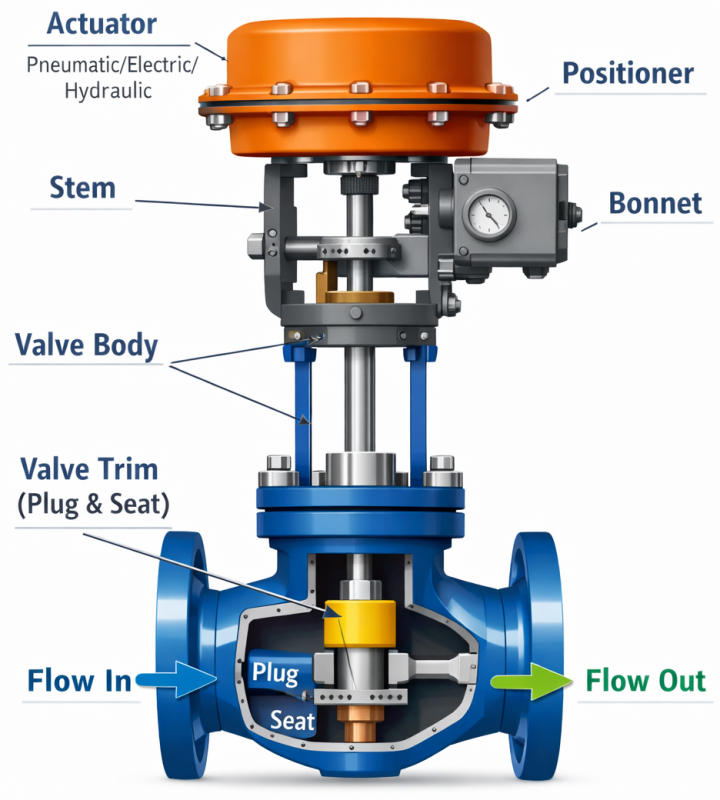

Main Control Valve Parts
Understanding the main control valve parts helps buyers and maintenance teams identify selection and performance issues.
1. Valve Body
The valve body contains the internal flow path and connects the control valve to the pipeline. Body material should be selected according to pressure, temperature, media and corrosion conditions.
2. Bonnet
The bonnet covers the upper section of the valve body and supports components such as the stem and packing assembly.
3. Valve Trim
Valve trim includes the internal components that directly control flow. Depending on valve design, trim may include the plug, disc, seat, cage and other flow-control components.
4. Stem or Shaft
The stem or shaft transfers movement from the actuator to the internal valve component. Linear control valves usually use stem movement, while rotary control valves use shaft rotation.
5. Actuator
The actuator provides the force required to move the valve. Pneumatic, electric and hydraulic actuator designs may be used depending on the application.
6. Positioner
A valve positioner helps move the control valve to the position required by the control signal. Correct positioner performance is important for accurate process control.
7. Packing and Gaskets
Packing helps control leakage around the stem, while gaskets provide sealing between connected valve components.
Common Control Valve Types
Different control valve types are used because process systems have different flow, pressure drop, response and installation requirements.
1. Globe Control Valve
A globe control valve uses linear stem movement to position a plug or disc relative to the seat. Globe-style control valves are widely used where accurate throttling and controlled flow adjustment are important.
For more information about the base globe valve design and industrial applications, see the guide on globe valves.
2. Ball Control Valve
A ball control valve uses a rotating ball to control the flow opening. Special control ball designs can provide useful flow characteristics for selected process applications.
3. Butterfly Control Valve
A butterfly control valve uses a rotating disc inside the valve body. The compact design can be useful in larger pipeline sizes and applications where lower valve weight and installation space are important.
Industrial buyers can also review this guide on butterfly valves for wafer, lug, flanged and PN-rated designs.
4. Diaphragm Control Valve
A diaphragm control valve uses a flexible diaphragm as part of the flow-control or isolation arrangement. It can be suitable for selected chemical, water treatment and process applications.
5. Three-Way Control Valve
A three-way control valve is used to mix two flow streams or divert one flow stream into different pipeline paths. These valves are commonly considered in temperature-control and process circulation systems.
Control Valve Types Comparison
| Valve Type | Movement | Common Application |
|---|---|---|
| Globe Control Valve | Linear | Accurate throttling and process flow control |
| Ball Control Valve | Rotary | Selected higher-flow process applications |
| Butterfly Control Valve | Rotary | Larger pipelines and compact installations |
| Diaphragm Control Valve | Linear | Selected chemical and water applications |
| Three-Way Control Valve | Linear or rotary | Mixing and diverting service |
Control Valve Flow Characteristics
Flow characteristic describes how the valve flow changes as valve travel or opening changes. The required characteristic depends on process behaviour and control-system design.
Linear Characteristic
In a linear characteristic, equal changes in valve travel are designed to produce approximately equal changes in flow coefficient under defined test conditions.
Equal Percentage Characteristic
In an equal percentage characteristic, each equal change in valve travel produces a proportional percentage change in flow capacity. It is widely considered in process applications with changing pressure conditions.
Quick Opening Characteristic
A quick opening characteristic provides a large increase in flow during the initial part of valve travel. It is more suitable for selected applications where rapid flow increase is required.
Where Are Control Valves Used?
An industrial control valve can be used wherever a process variable must be regulated automatically.
- Steam systems: Steam flow and pressure control.
- Boiler systems: Feedwater, steam and utility control applications.
- Water treatment plants: Water flow and process regulation.
- Chemical processing: Controlled movement of suitable process media.
- Oil and gas systems: Flow and pressure regulation in selected services.
- Power plants: Steam, cooling water and utility process control.
- Pharmaceutical plants: Controlled process-fluid applications.
- Food processing: Suitable hygienic and process-control applications.
- HVAC systems: Chilled water and heating-system control.
How to Select the Right Control Valve
Correct control valve selection should be based on actual process data. Selecting only by pipeline size can result in unstable operation, excessive pressure drop, noise, leakage and poor control performance.
1. Understand the Process Media
Identify whether the media is steam, water, oil, gas, air, chemical or another process fluid. Check corrosion risk, viscosity, suspended particles and compatibility with valve materials.
2. Check Pressure and Temperature
Confirm normal operating pressure, maximum pressure, inlet pressure, outlet pressure and process temperature. These values affect body material, pressure class, trim and sealing selection.
3. Confirm Flow Requirement
Normal, minimum and maximum flow conditions should be identified. The control valve must operate effectively across the expected flow range.
4. Calculate Pressure Drop
Pressure drop across the valve is a major sizing and performance factor. Incorrect pressure-drop assumptions can result in oversized or undersized valve selection.
5. Select the Correct Valve Type
Choose globe, ball, butterfly, diaphragm or another control valve design according to process conditions, control accuracy and installation requirements.
6. Select the Flow Characteristic
Linear, equal percentage or other suitable characteristics should be selected according to the control-loop and process requirement.
7. Choose the Actuator
Actuator type and size should provide enough force or torque to move the valve under actual differential-pressure conditions.
8. Check Fail Position
Depending on process safety requirements, a control valve may need a defined fail-open, fail-closed or fail-in-position behaviour.
9. Consider Maintenance Access
The installation should provide enough space for actuator, positioner and valve maintenance.
Buyers evaluating commercial suppliers can separately review the guide to control valve manufacturers in India. That page is focused on manufacturer and supplier selection, while this guide focuses on control valve working, parts, types and technical selection.
Control Valve Selection Checklist
| Selection Point | Details to Confirm |
|---|---|
| Media | Steam, water, oil, gas, air or process fluid |
| Flow rate | Minimum, normal and maximum flow |
| Inlet pressure | Normal and maximum inlet pressure |
| Outlet pressure | Required downstream pressure |
| Temperature | Normal and maximum process temperature |
| Valve type | Globe, ball, butterfly, diaphragm or other design |
| Material | Body and trim material compatibility |
| Actuator | Pneumatic, electric or suitable operating system |
| Fail position | Fail open, fail closed or required process position |
| Documentation | Testing, material and inspection requirements |
Common Control Valve Sizing Mistakes
Correct sizing is important because a control valve should operate within an effective control range instead of remaining almost fully closed or fully open during normal operation.
- Selecting the valve only according to pipeline size.
- Ignoring minimum and maximum flow conditions.
- Using incorrect inlet or outlet pressure data.
- Ignoring process temperature.
- Not considering pressure drop across the valve.
- Oversizing the control valve.
- Ignoring noise, vibration or cavitation risk.
- Selecting the actuator without checking required force or torque.
Control Valve Maintenance Checklist
Regular inspection helps maintain stable valve operation and reduces unexpected process problems.
- Inspect the valve body for external leakage.
- Check stem and packing condition.
- Inspect actuator movement.
- Check positioner response and calibration.
- Monitor unusual noise and vibration.
- Check valve movement for sticking.
- Inspect air-supply quality in pneumatic systems.
- Review process trends for unstable valve operation.
- Inspect internal trim during scheduled shutdowns where required.
Common Control Valve Problems
Valve Hunting
Valve hunting is continuous movement around the required control position. Possible causes include poor controller tuning, valve oversizing, positioner problems or excessive system sensitivity.
High Pressure Drop
Unexpected pressure loss may result from incorrect sizing, internal restrictions or process conditions different from the original design data.
Leakage
Leakage may occur because of seat damage, trim wear, packing problems or contamination inside the valve.
Noise and Vibration
Excessive noise or vibration can indicate high velocity, severe pressure drop, cavitation, flashing or unsuitable valve selection.
Slow Valve Response
Slow response may be caused by actuator problems, poor instrument-air supply, positioner issues, excessive friction or mechanical sticking.
Control Valve vs On-Off Valve
| Point | Control Valve | On-Off Valve |
|---|---|---|
| Main purpose | Process regulation | Flow isolation |
| Valve position | Continuously adjustable | Mainly open or closed |
| Control signal | Normally linked to process control | Open-close command |
| Typical use | Flow, pressure, temperature or level control | Pipeline isolation |
| Selection requirement | Detailed sizing and process data | Isolation and service suitability |
Why Control Valve Quality and Correct Selection Matter
A control valve directly affects the process condition it is designed to regulate. Poor sizing or unsuitable valve selection can cause unstable control, energy loss, noise, vibration and higher maintenance requirements.
Buyers should provide complete operating data and compare valve design, materials, actuator requirements, testing and technical support before final selection.
Why ACP Valves?
ACP Valves supports industrial pipeline applications with valves, boiler mounting products, fittings and flow-control products. Selection support can be based on media, pressure, temperature, pipeline size and operating requirements.
For technical or commercial requirements, contact ACP Valves with your process media, pressure, temperature, flow requirement, valve size and application details.
FAQs About Control Valves
What is a control valve?
A control valve is an industrial valve that changes its opening to regulate flow, pressure, temperature or liquid level according to a process-control signal.
How does a control valve work?
A controller sends a signal to the valve actuator. The actuator moves the valve stem or shaft, changing the internal flow area and regulating the process condition.
What are the main control valve parts?
Main control valve parts include the valve body, bonnet, trim, stem or shaft, actuator, positioner, packing and gaskets.
What are the common types of control valves?
Common control valve types include globe control valves, ball control valves, butterfly control valves, diaphragm control valves and three-way control valves.
Which control valve is suitable for accurate throttling?
Globe-style control valves are widely considered for accurate throttling applications, but final valve selection depends on flow, pressure drop, temperature and process conditions.
Why is control valve sizing important?
Correct sizing helps the valve operate within an effective control range. An oversized or undersized valve can cause poor control performance, instability or excessive pressure loss.
Where are control valves used?
Control valves are used in steam systems, boilers, water treatment, chemical plants, power plants, oil and gas systems, HVAC and other industrial process applications.
Final Thoughts
A control valve is an important part of an industrial process-control system because it regulates flow, pressure, temperature or liquid level according to changing operating conditions.
Understanding control valve types, control valve working, control valve parts and control valve selection helps engineers and buyers avoid sizing errors and select a more suitable valve for the actual application.
Before selecting a valve, confirm media, flow rate, inlet pressure, outlet pressure, temperature, pressure drop, material requirement, valve type, actuator and fail position. Complete process data leads to better control performance and more reliable industrial operation.
