Buy High Pressure Non Return Valves for Industrial Use

ACP 3100

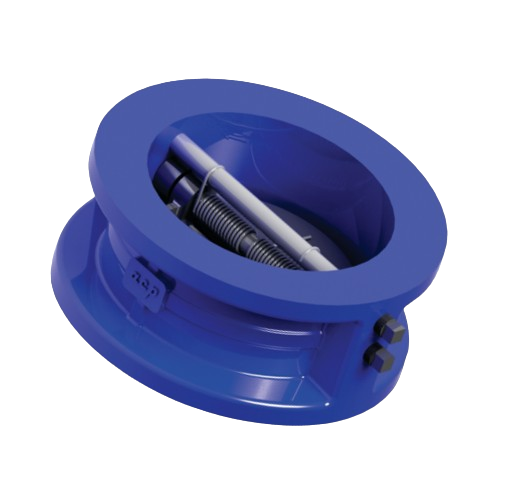

Design Standard IS 13095 / BS EN 593 (BS 5155) GB)
Wafer type design to take less space in comparison to conventional check valves 7 ee
Cast lron/Ductile lron/Stainless Steel Construction
Stainless Steel CF8/CF8-M Disc/Cast Iron/Ductile Iron Plates
Integrally Moulded Rubber Lining (EPDM/Nitrile/Neoprene/Viton/Silicon ) as per requirement
Torsion spring assisted closure of plates results in NIL water hammering & NON SLAM closure
Uniform stress distribution due to cylindrical design of body Can be installed in vertical or horizontal positions
Flat seat design for longer sealing life
End connections are designed to suit flanges drilled to ANSI B Class-125 / ASME B
Class – 150
Test Pressure Rating PN 16
Shell 24 bar (340 psig)
Seat 17.6 bar (250 psig)
Maximum Working Temperature 90° celcius
Maximum Working Pressure 16 bar (230 psig)

Design Standard IS 13095 / BS EN 593 (BS 5155) GB)
Wafer type design to take less space in comparison to conventional check valves 7 ee
Cast lron/Ductile lron/Stainless Steel Construction
Stainless Steel CF8/CF8-M Disc/Cast Iron/Ductile Iron Plates
Integrally Moulded Rubber Lining (EPDM/Nitrile/Neoprene/Viton/Silicon ) as per requirement
Single Plate construction, Wafer type short pattern
Investment cast integral disc & shaft construction
End connections are designed to suit flanges drilled to ANSI B Class-125 / ASME B
Class – 150
Test Pressure Rating PN 16
Shell 24 bar (340 psig)
Seat 17.6 bar (250 psig)
Maximum Working Temperature 90° celcius
Maximum Working Pressure 16 bar (230 psig)
